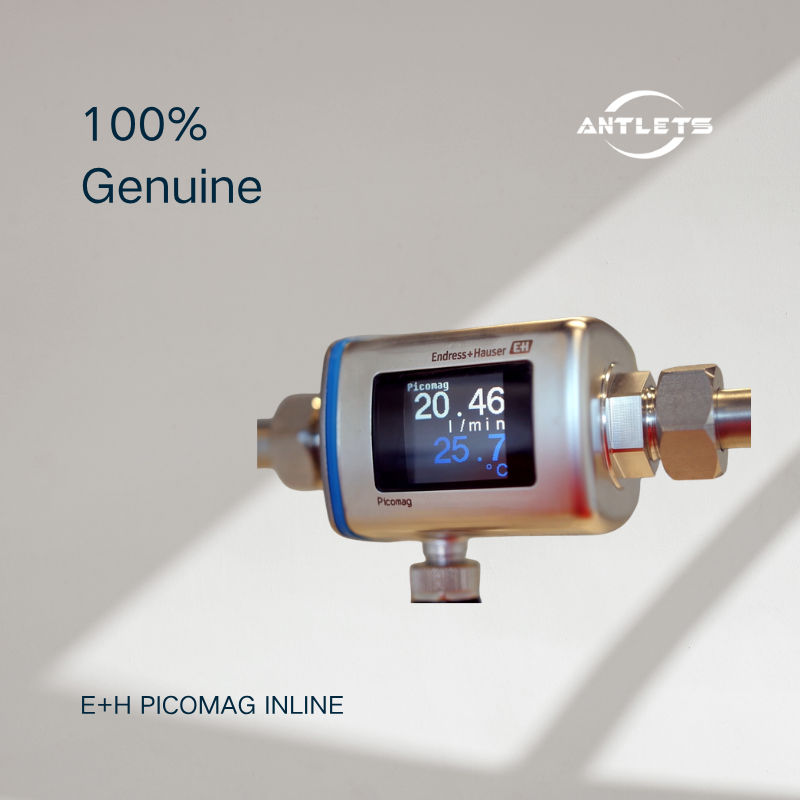

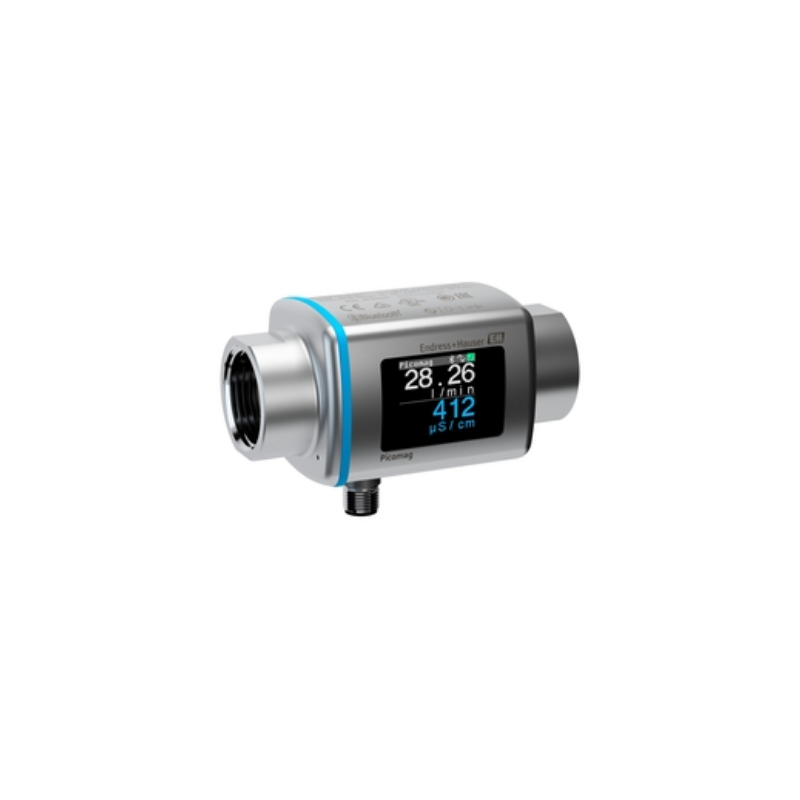

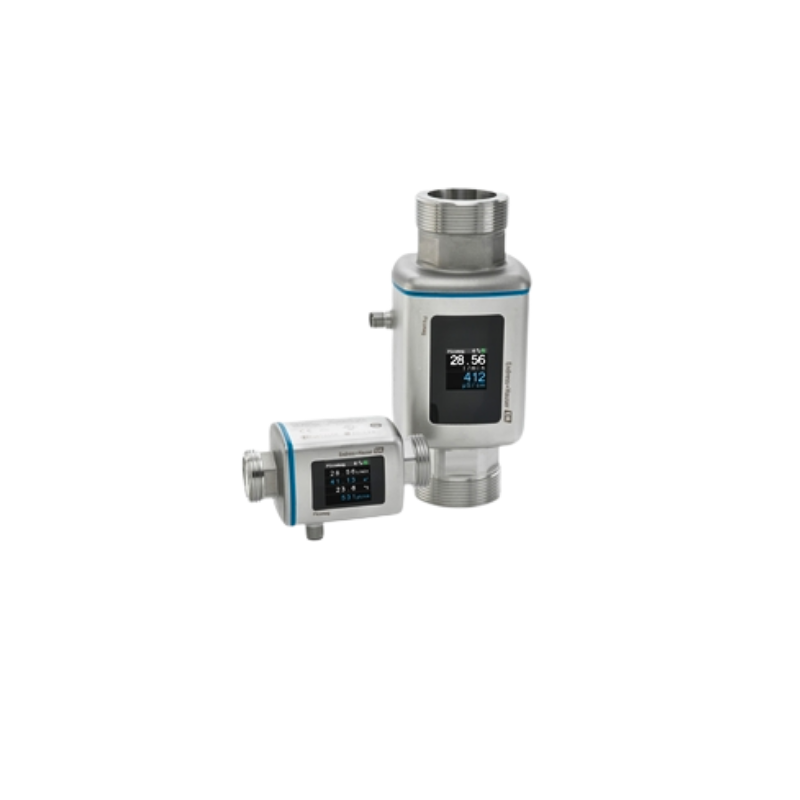

Picomag Inline electromagnetic flowmeter

E+H DMA Picomag Inline electromagnetic flowmeter

$500.00

The Picomag Inline is a compact electromagnetic flowmeter designed for space-constrained applications requiring reliable conductive liquid measurement. This inline instrument features a space-saving design while maintaining accurate flow measurement capabilities for water and water-based solutions. Easy to install and operate, it provides a cost-effective solution for basic process applications. The flowmeter’s robust construction ensures dependable performance in various industrial environments. Ideal for HVAC systems, water distribution, and simple industrial processes, the Picomag Inline delivers essential flow measurement functionality where compact dimensions and reliable performance are key requirements.



Category: Tag: Brand:

Field of application

Picomag Inline is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag Inline for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.


Device properties

  • High shock and vibration resistance

  • Degree of protection: IP65/67

  • Empty pipe detection

  • Wireless remote access via Bluetooth SmartBlue app

  • IO-Link and various I/Os for all line-sizes

  • 1.4″ TFT color display with backlight

Benefits

  • Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection

  • Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement

  • Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing

  • Quick offline configuration check – unique, comfortable knock functionality

  • Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue app

  • Instant local process monitoring – large, user-friendly display of all measurement activities

  • Flexible integration into all fieldbus systems – plug-and-play device with IO-Link

Nominal diameter range

DN15 to 50 (1/2 to 2")
Wetted materials

PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
Measured variables

Volume flow, Temperature, Conductivity
Max. measurement error

Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
Measuring range

up to 750 l/min
Max. process pressure

16 bar
Medium temperature range

-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
Ambient temperature range

-10 to 60 °C
Sensor housing material

1.4404/316L, Polycarbonate
Transmitter housing material

1.4404/316L, Polycarbonate
Degree of protection

IP 65/67
Display/Operation

Integrated display, operation via Bluetooth technology
Outputs

Current (4 to 20mA)
Pulse
Switch
Voltage (2 to 10V)
Inputs

Status
Digital communication

IO-Link
Power supply

18 to 30V DC
Product safety

cULus listing
Hygienic approvals and certificates

Drinking water approvals: NSF
