Dosimag / 5BH

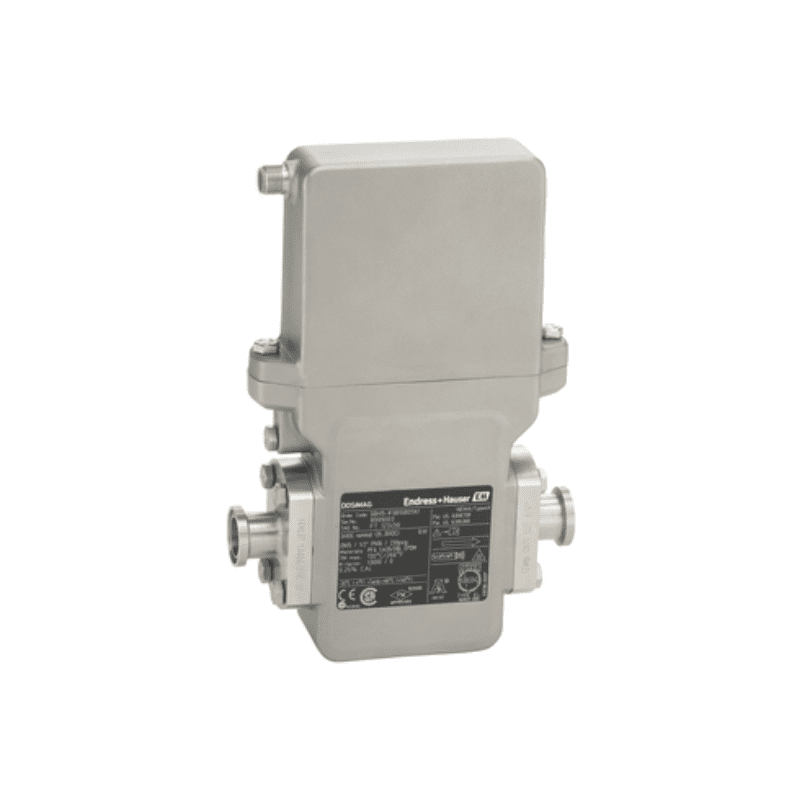

Dosimag 5BH electromagnetic flowmeter

$2,000.00

The Dosimag 5BH is a specialized electromagnetic flowmeter designed for precise chemical dosing and additive proportioning applications. This compact instrument delivers accurate measurement of conductive liquids in chemical injection processes, ensuring optimal control in water treatment, food production, and industrial manufacturing. With its space-saving design and high measurement accuracy, it enables reliable dosing of chemicals and treatment agents. The flowmeter features robust construction suitable for handling aggressive chemicals and maintains stable performance in demanding process conditions. Ideal for applications where precise proportional control and process reliability are essential for maintaining product quality.

Dosimag Technical Information

Category: Tag: Brand:

  • Sensor features

    High process safety – high measuring accuracy and repeatability in shortest filling time. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
    Wetted materials CIP, SIP cleanable. Nominal diameter: DN 4 to 25 (¹⁄₈ to 1″). Measuring device conform to FDA.

  • Transmitter features

    Versatile and time-saving wiring – plug connector. Industry-optimized – ultra-compact design. For hygienic requirements – stainless steel housing.
    Pulse/frequency/switch output, Modbus RS485. Custody transfer approvals (MID, NTEP). Excellent, easily cleanable transmitter.

Nominal diameter range

DN 4 (⁵⁄₃₂"), 8 (⁵⁄₁₆"), 15 (½"), 25 (1")
Wetted materials

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
Platinum
Measured variables

Volume flow
Max. measurement error

±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
±0.5 % o.r. ± 1 mm/s (0.04 in/s)
±5 % o.r.
Measuring range

0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
Max. process pressure

PN 16
Medium temperature range

Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
Seal material Viton: 0 to +150 °C (+32 to +302 °F)
Ambient temperature range

–40 to +60 °C (–40 to +140 °F)
Sensor housing material

1.4308 (304)
Transmitter housing material

1.4308 (304)
Degree of protection

IP66/67, type 4X enclosure
Display/Operation

No local Operation
Configuration via operating tools possible
Outputs

Pulse/frequency/switch output (passive)
Digital communication

Modbus RS485
Power supply

DC 20 to 30 V
Hazardous area approvals

ATEX, IECEx, cCSAus
Product safety

CE
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025)
NTEP
Material certificates

3.1 material
Hygienic approvals and certificates

Sanitary approval: 3-A, EHEDG, seals acc. to FDA
