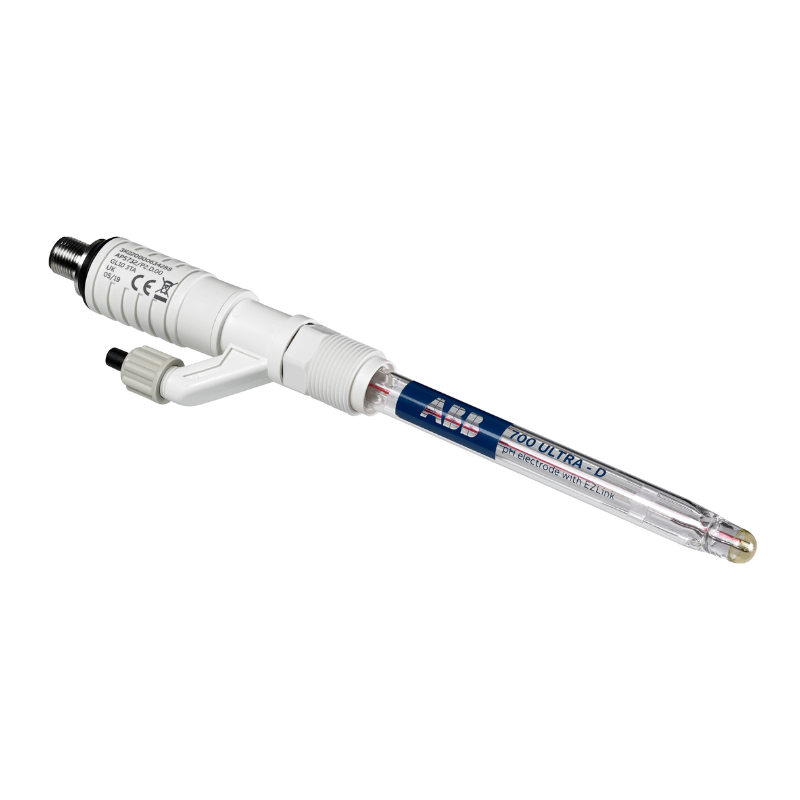

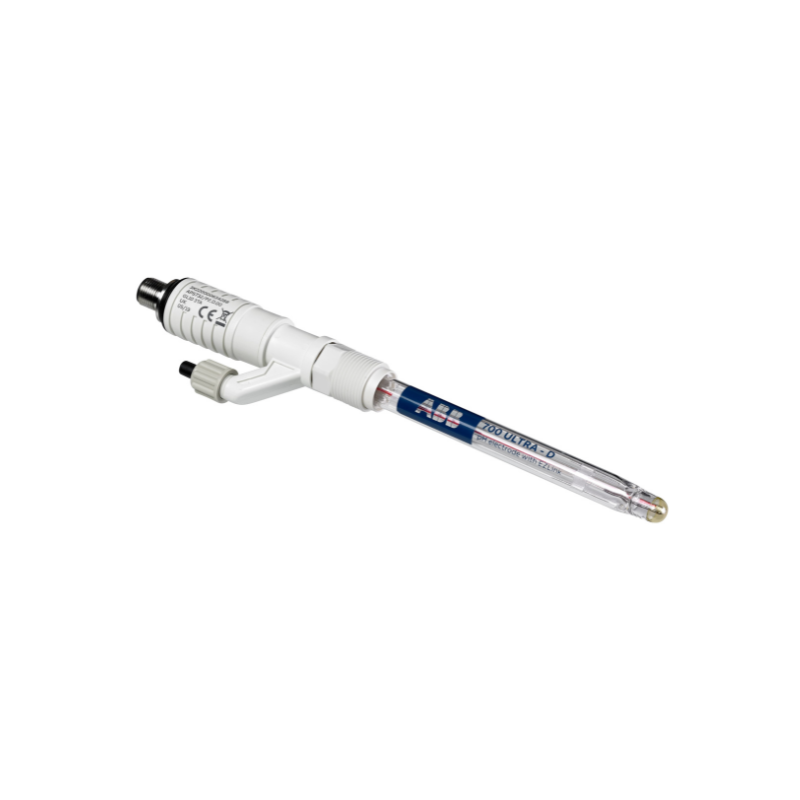

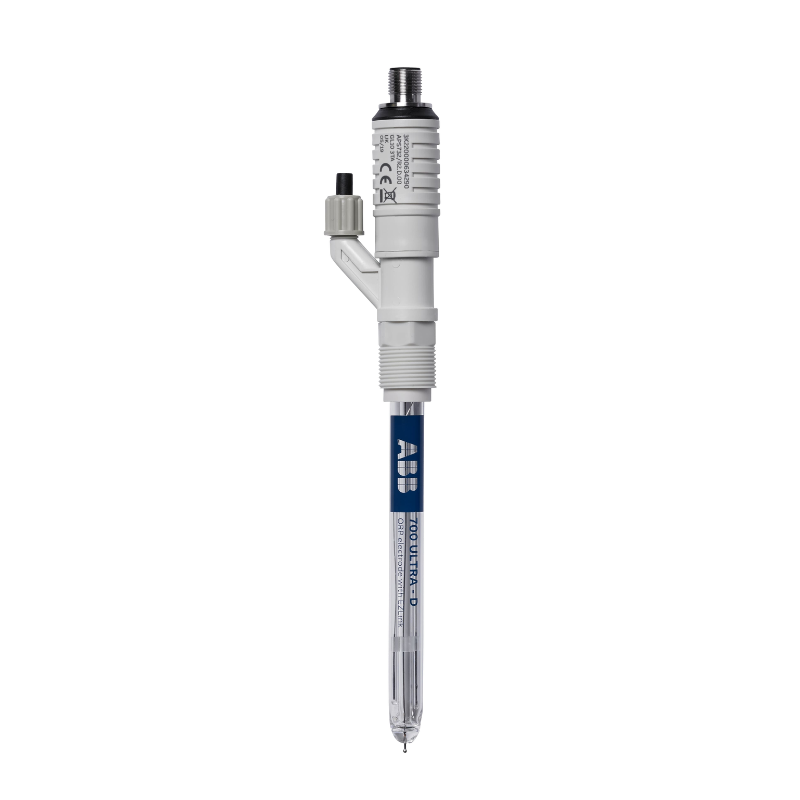

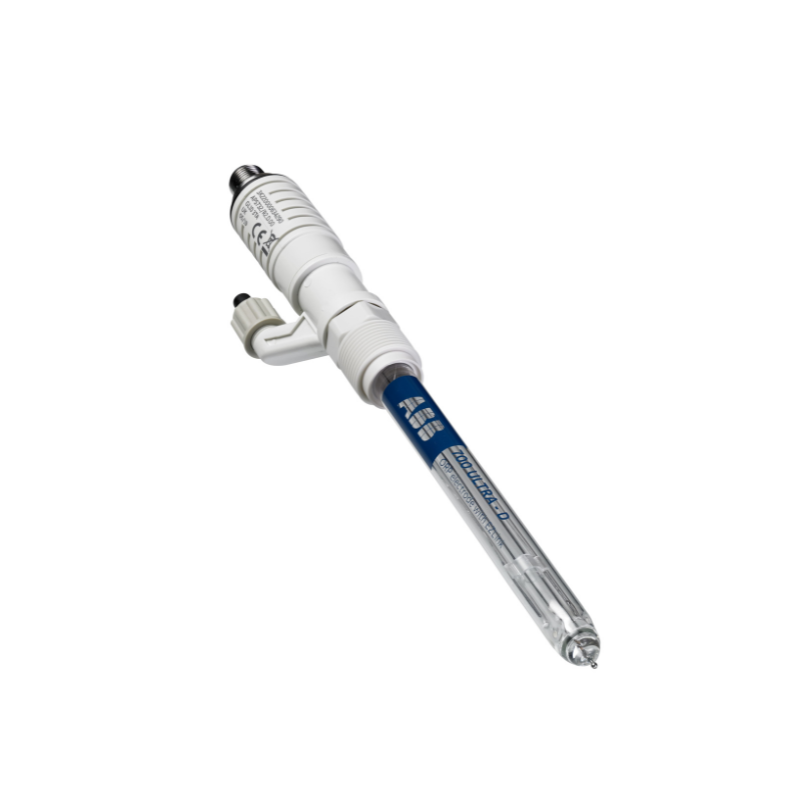

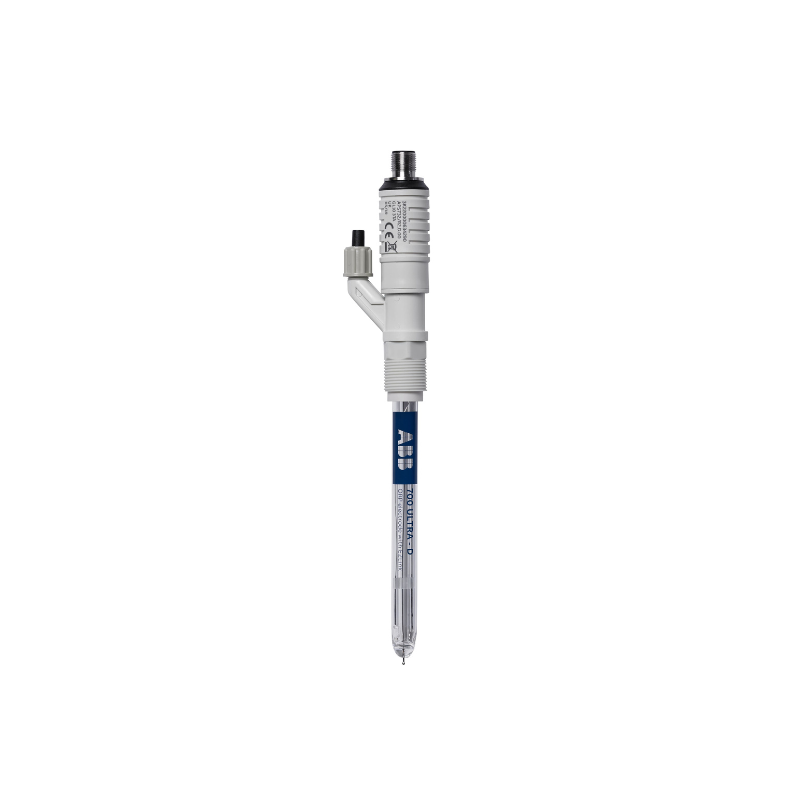

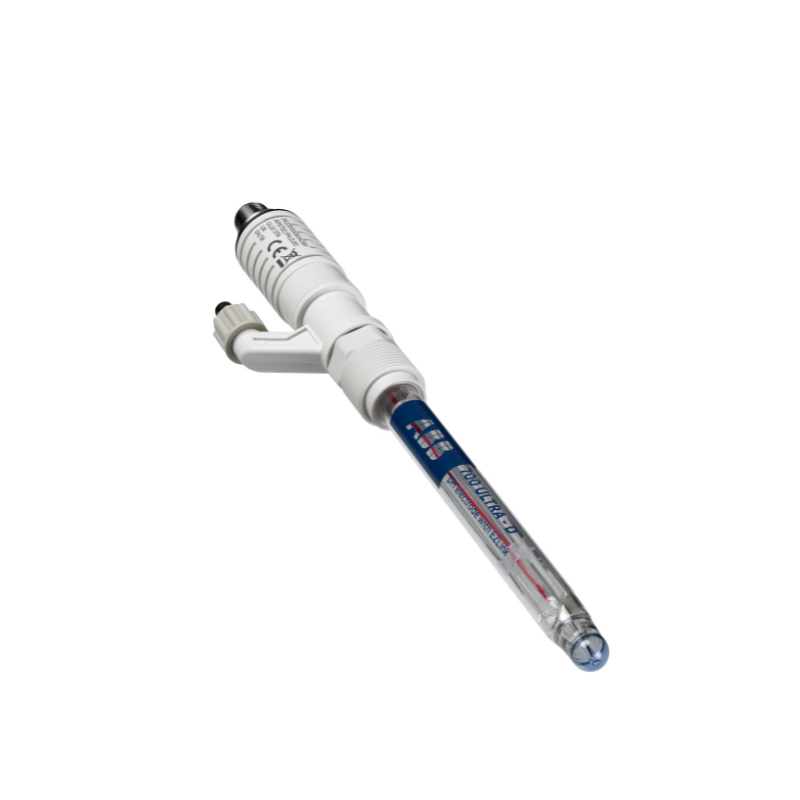

ABB 700 ULTRA-D pH/ORP digital sensor
$780.00
The ABB 700 ULTRA-D digital pH/ORP sensor is engineered for the most demanding industrial applications. It integrates an ultra-durable body with advanced digital MEMS technology, delivering exceptional stability and accuracy in aggressive chemical and abrasive environments. This sensor provides reliable, drift-free data with easy digital integration, ensuring continuous performance where traditional sensors cannot survive.
Enhanced with a triple ceramic junction design, the 700 ULTRA-D has improved speed of response while maintaining measurement stability in the most demanding high purity applications.
The 700 ULTRA-D sensor provides:
EZLink™ connectivity
- Plug-and-play technology makes sensor integration fast and easy
- Advanced diagnostics offering end-of-life indication and fault analysis
- Improved measurement accuracy with digital communication
Increased efficiency
- Propriety high performance glassware formulations provide the highest level of reliability and responsiveness

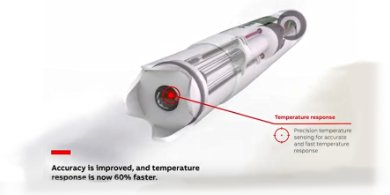

- Close-coupled temperature measurement ensures high accuracy even with rapid temperature changes
Measurement confidence
- Refillable KCl reservoir offering maximum usability and extended operation in high purity applications
- Triple ceramic junction reduces plugging while providing improved measurement stability and speed of response
- Each electrode is manufactured to the highest quality standards and provided with a calibration certificate
Modular design
- 12 mm sensor paired with intelligent accessories provides simplified mounting

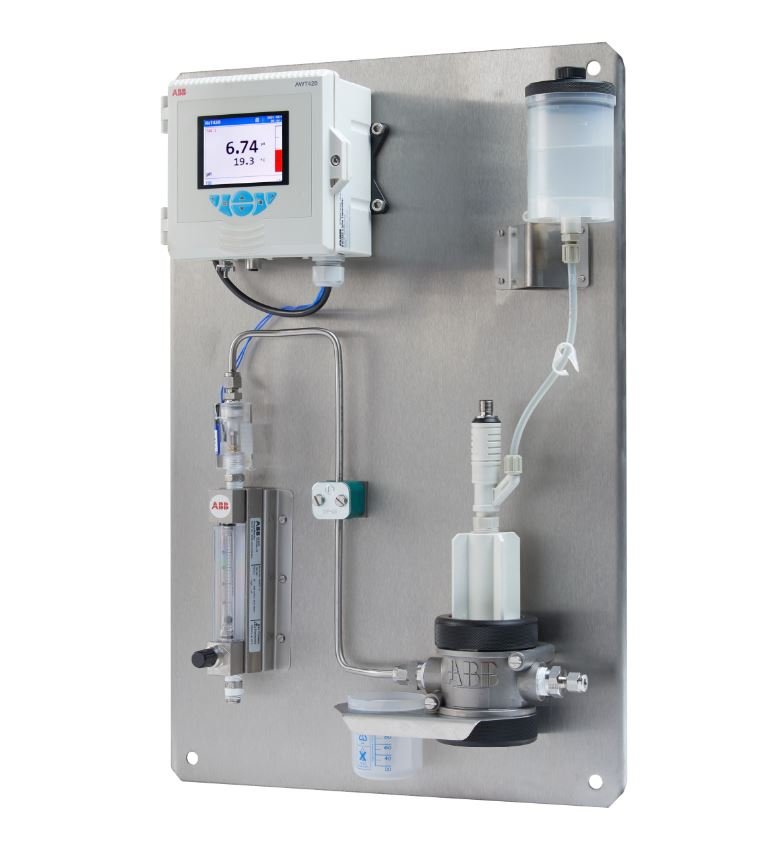

- Optional 700 ULTRA sampling panel provides a complete system for simple integration
- Available in a range of detached or integral cabling options
| Measurement range | pH 0 to 14 pH |
|---|---|
| Process temperature | –5 to 100 °C (23 to 212 °F) |
| Pressure range | Atmospheric |
| Recommended minimum sample conductivity | 0.055 μS/cm |
| pH glass | High performance (S) glass (bullet) |
| Redox (ORP) | Platinum |
| Reference system | Flowing KCl electrolyte with Ag/AgCl double junction |
| Reference junction | Ceramic |
| Connection type | EZLink |
| Process connections | PG 13.5 |
| Approvals, certification and safety | CE Mark |
Related products
-
-

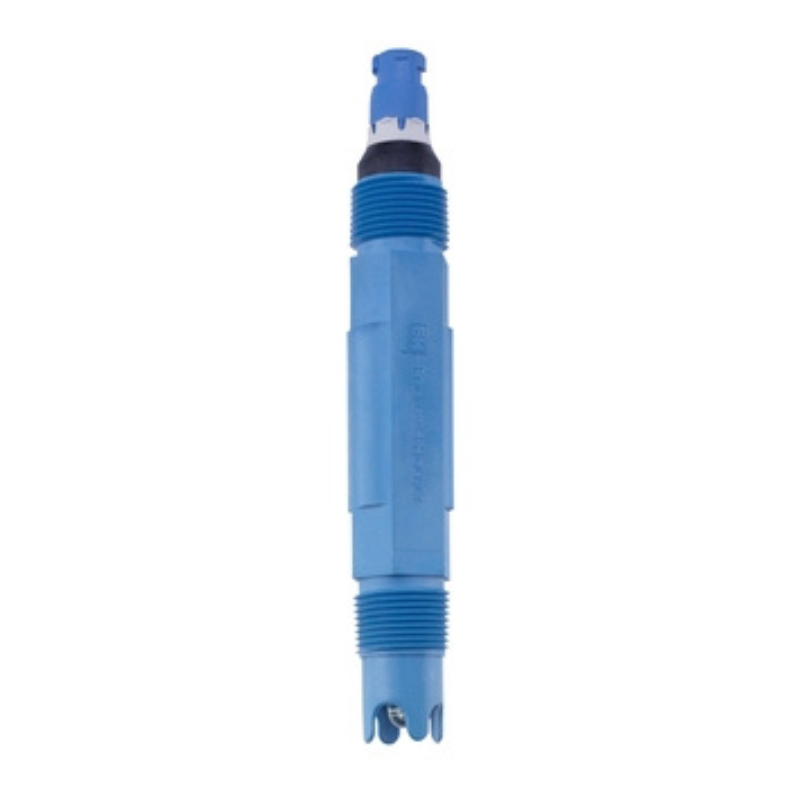

Liquid AnalysisEndress+Hauser Digital ORP sensor Memosens CPS12E for water & wastewater industries
