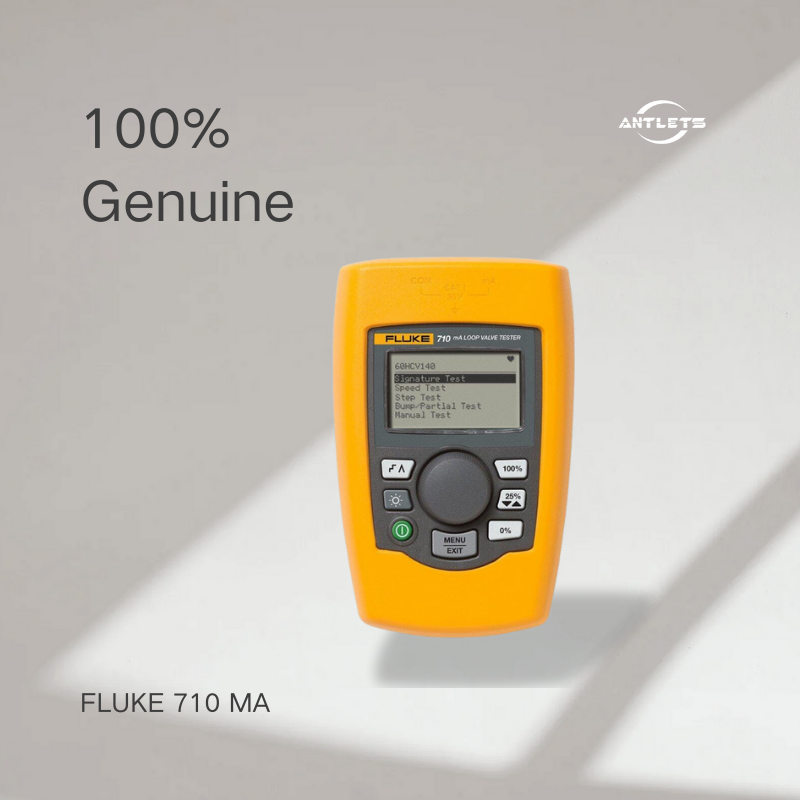

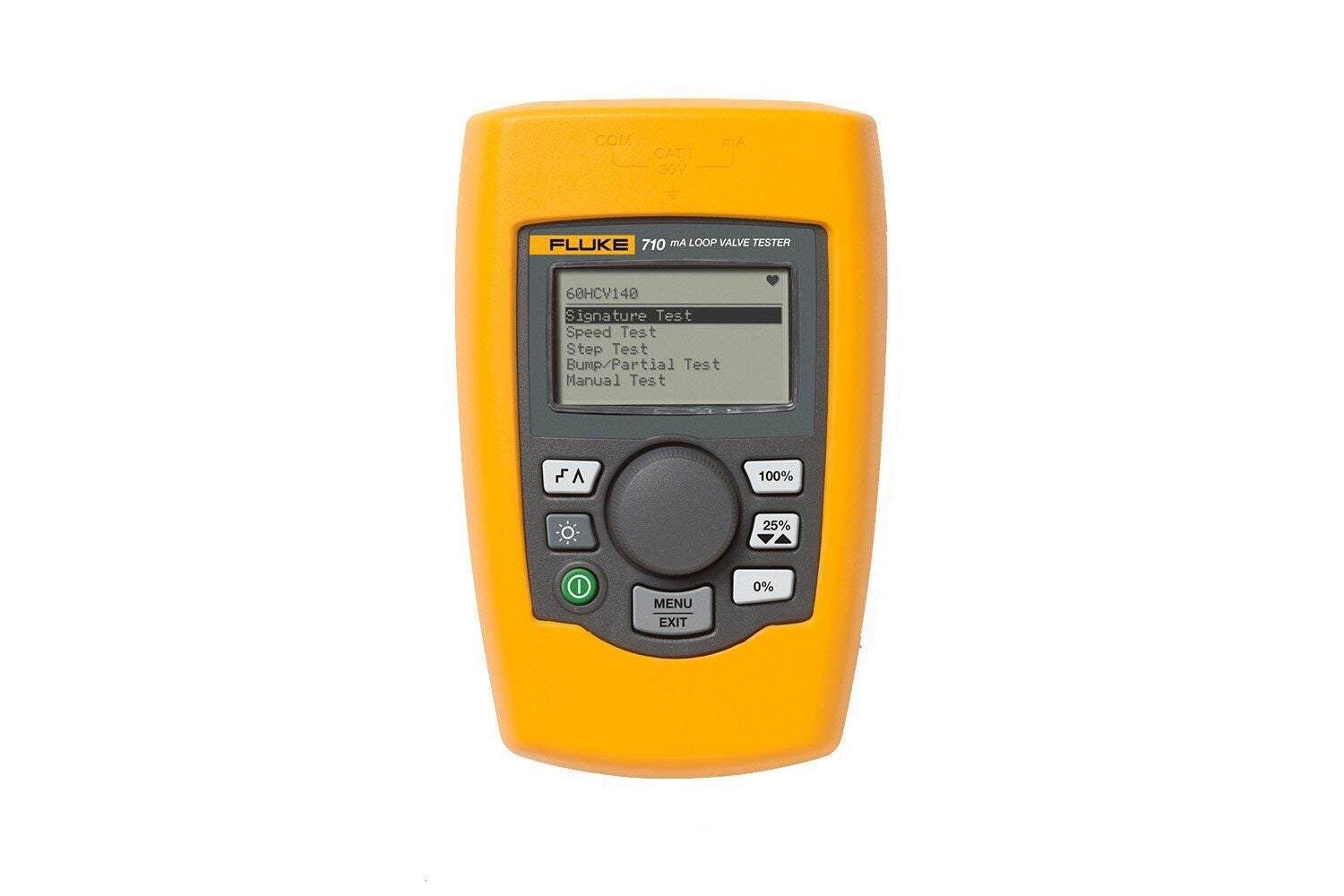

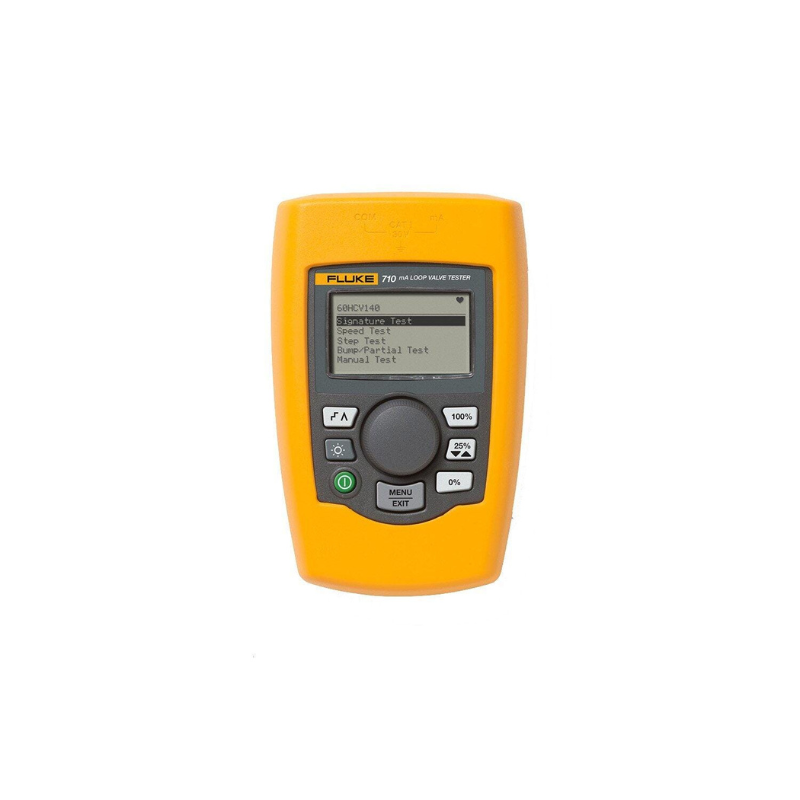

FLUKE 710 mA Loop Valve Tester
$2,500.00
Typical Applications:

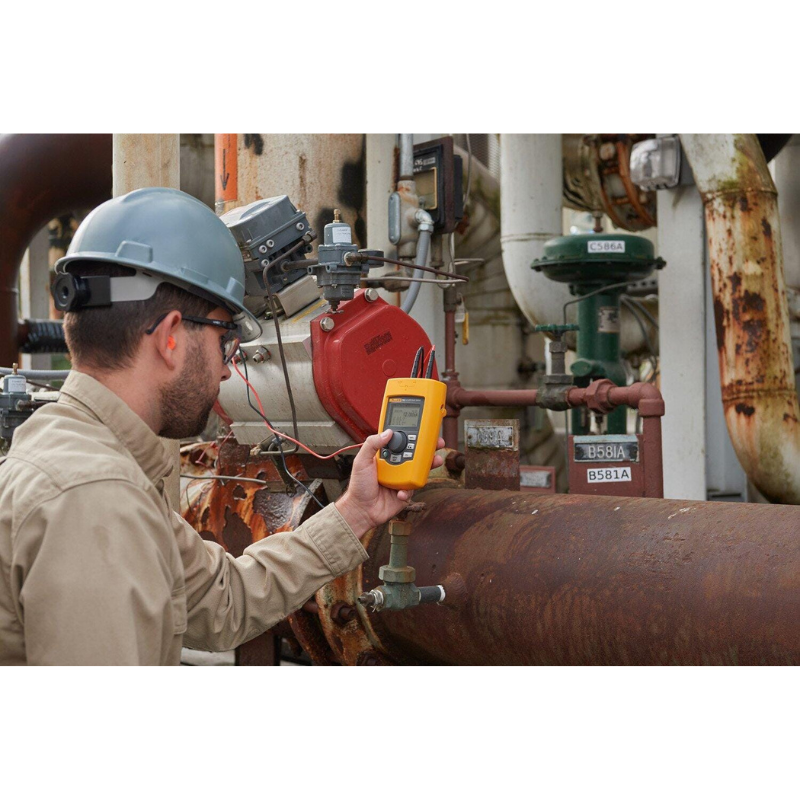

• Field testing of current (mA) control loops
• Verification of valve positioner and control valve loops
• Maintenance and troubleshooting of transmitters and control systems
• Industrial process instrumentation loop testing
Not Recommended For:
• Continuous online measurement or control
• Electronics bench calibration systems requiring ultra-high precision
• Applications outside 0-20 mA / 4-20 mA loop ranges
The Fluke 710 mA Loop Valve Tester is a precision industrial calibration tool for measuring, sourcing, and simulating 4-20 mA loop signals while evaluating valve health and control performance.
710 mA Loop Valve Tester Technical Data
Selection Notes
• Confirm that an mA loop and valve tester meets your field diagnostics needs
• Designed for portable testing of control loops and valve feedback circuits
• Supports measurement and simulation of 4-20 mA loops
• Ideal for valve positioner, actuator, and control system troubleshooting
• Proper safety practices should be used when applying loop power
Why Choose the Fluke 710 mA Loop Valve Tester
• Portable tester for mA loops and valve position feedback circuits
• Measures and simulates current signals for loop verification
• Designed for control system troubleshooting and maintenance
• Provides loop power for transmitter and valve positioner tests
Key features
- Key valve testing functions include pre-configured valve signature test, speed test, step test, manual test, and bump/partial stroke test
- Key mA loop calibrator functions include mA source, mA simulate, mA read, mA read/loop power, and volts read

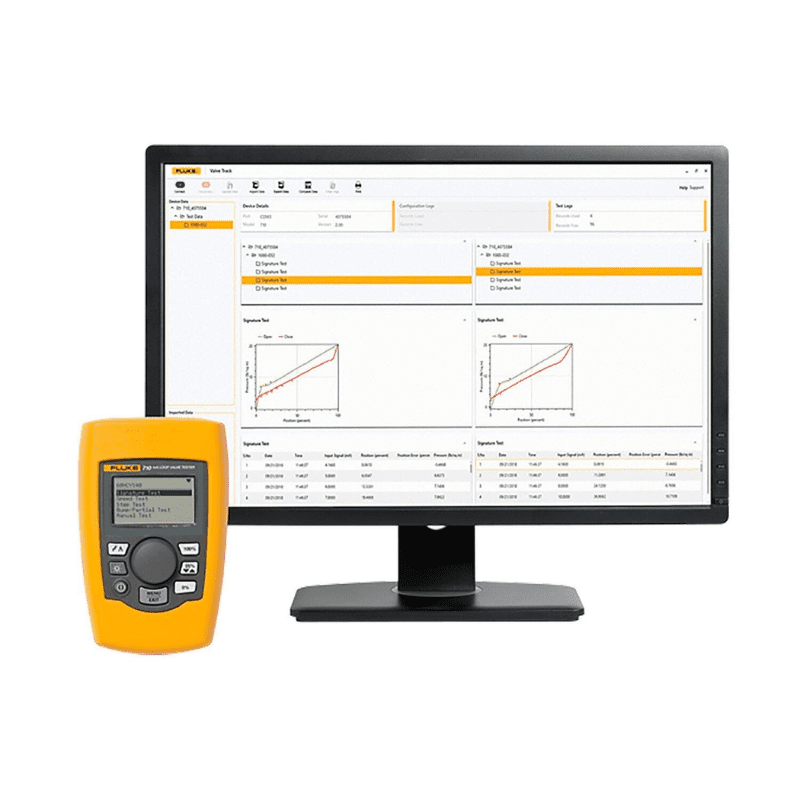

- ValveTrack™ Software enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
FAQ
Q: What functions does the Fluke 710 support?
A: It supports measurement and simulation of 4-20 mA loops and valve feedback testing.
Q: Is the Fluke 710 suitable for field use?
A: Yes. It is designed for portable on-site loop and valve feedback testing.
Q: Can it supply loop power?
A: Yes. It provides loop power for testing transmitters and positioners.
Q: Can you help confirm if this tester fits my application?
A: Yes. Our engineers can review your loop requirements and recommend the appropriate solution.
| Functions | mA source, mA simulate, mA read, mA read/loop power, and volts read. |
|---|---|
| Ranges | mA (0 to 24 mA) and Volts (0 to 30 V DC) |
| Resolution | 1 µA on mA ranges and 1 mV on voltage range |
| Accuracy | 0.01% ± 2 counts, all ranges (@ 23 °C ± 5 °C [73.4 °F ± 41 °F]) |
| Operating temperature range | -10°C to 55°C (14°F to 131°F) |
| Humidity range | 10 to 95% non-condensing |
| Stability | 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C |
| Display | 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits |
| Power | 6 AAA alkaline |
| Battery life | 40 hours continuous use (measure mode using) |
| Loop compliance voltage | 24 V DC @ 20mA |
| Over-voltage protection | 240 V AC |
| Overload current protection | 28 mA DC |
| EMC | EN61326 Annex A (Portable Instruments) |
Related products
-
Pressure MeasurementVEGABAR 83 Pressure transmitter with metallic measuring cell
$1,100.00 Add to cart -

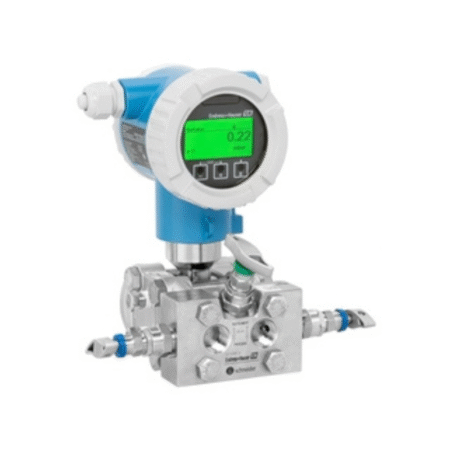

Flow MeasurementEndress+Hauser Deltabar PMD50 – differential pressure transmitter
$1,200.00 Add to cart -
-

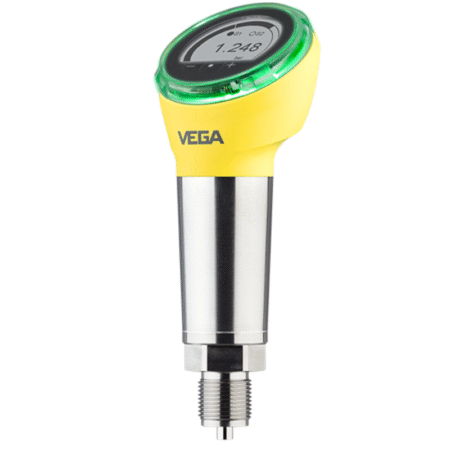

Pressure MeasurementVEGABAR 82 Pressure transmitter with ceramic measuring cell
