Pressure measurement is one of the most critical parameters in industrial automation systems. From chemical reactors to steam boilers and water treatment systems, pressure not only indicates process conditions but also plays a key role in safety and process stability.

In modern process industries, pressure transmitters convert process pressure into standardized signals such as 4–20 mA or digital communication signals, allowing PLC or DCS systems to monitor and control operations in real time.

Understanding how pressure signals are generated and converted into electrical outputs can help engineers better understand these applications.

The following sections introduce several typical industrial scenarios where pressure measurement instruments play an essential role.

---

Pressure Monitoring in Chemical Reactors

Scenario

In chemical and pharmaceutical manufacturing, many reactions occur inside sealed reactors under controlled pressure and temperature conditions. Maintaining stable pressure inside the reactor is essential for ensuring reaction efficiency and product quality.

Even small pressure deviations may affect reaction kinetics or cause safety risks.

Measurement Requirement

Reactor pressure monitoring typically requires:

• High measurement accuracy
• Long-term stability under harsh conditions
• Compatibility with corrosive media

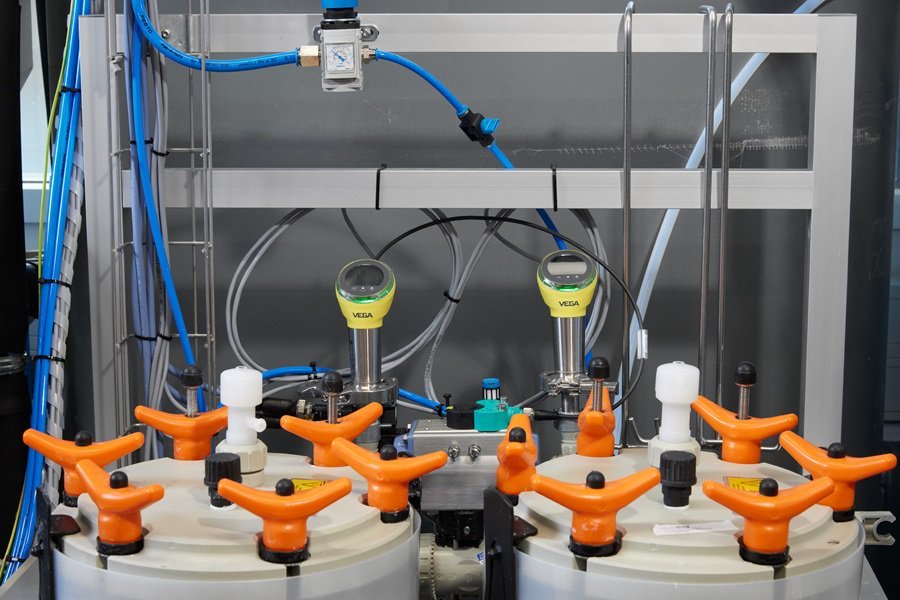

In these environments, industrial plants often use pressure transmitters such as VEGA VEGABAR or Yokogawa EJA series to monitor reactor pressure.

Measurement Principle

The process pressure acts on a diaphragm or measuring cell inside the transmitter. The resulting mechanical deformation is detected by the sensor and converted into an electrical signal.

This signal is then transmitted to the control system, enabling operators to monitor and regulate reactor pressure in real time.

In the chemical industry, accurate pressure monitoring is essential for maintaining stable reaction conditions and ensuring safe operation.

---

Steam Boiler Pressure Control

Scenario

Steam boilers are widely used in power plants, chemical plants, and industrial manufacturing facilities. The boiler generates high-temperature steam that drives turbines or supports heating processes.

If steam pressure becomes too high, it can damage equipment or create safety hazards. If the pressure is too low, system efficiency decreases.

For this reason, pressure transmitters are installed at key points in boiler systems and steam pipelines.

Measurement Requirement

Steam pressure monitoring usually requires:

• High reliability in high-temperature environments
• Stable operation under high pressure
• Accurate real-time pressure measurement

Industrial facilities commonly use transmitters such as Rosemount 3051 or Siemens SITRANS P for boiler pressure monitoring.

Measurement Principle

The transmitter senses steam pressure through a diaphragm or pressure sensing element. The pressure signal is converted into an electrical signal and transmitted to the control system.

The control system then adjusts valves or burner output to maintain stable steam pressure, ensuring safe and efficient boiler operation.

Pressure monitoring in boilers is essential for energy efficiency and operational safety in power generation and industrial processes.

---

Differential Pressure Monitoring in Filtration Systems

Scenario

Filtration systems are widely used in water treatment plants, chemical processes, and industrial manufacturing.

Over time, particles accumulate inside the filter media. This increases flow resistance and causes a pressure drop across the filter.

Monitoring this pressure difference helps determine when the filter needs cleaning or replacement.

Measurement Requirement

Typical requirements include:

• Reliable differential pressure measurement
• Long-term stability in water or process fluids
• Integration with automation systems

Common solutions include Endress+Hauser Deltabar differential pressure transmitters or Siemens SITRANS P transmitters.

Measurement Principle

A differential pressure transmitter measures the pressure difference between two points in the system.

When the filter is clean, the pressure difference is relatively small. As the filter becomes clogged, the resistance increases and the differential pressure rises.

Once the differential pressure reaches a predefined threshold, maintenance or filter replacement is required.

Differential pressure measurement is widely used in filtration systems, flow measurement, and pipeline monitoring.

---

Why Pressure Measurement Is Essential in Industrial Processes

Compared with temperature or level measurement, pressure measurement often directly relates to process safety.

For example:

• Reactor pressure fluctuations may indicate abnormal reactions
• Pipeline pressure drops may indicate leaks
• Increasing filter differential pressure may indicate clogging

Because of this, pressure transmitters are not just measurement devices. They are essential components of industrial automation and process safety systems.

---

Conclusion

Pressure measurement plays a fundamental role across many industrial sectors, including chemical processing, power generation, and water treatment.

By continuously monitoring pressure conditions, engineers can detect process changes early, maintain stable operating conditions, and improve plant safety and efficiency.

In the next article, we will discuss how to select the right pressure measurement instrument for different industrial conditions.

Pressure measurement plays a critical role in industrial processes such as chemical production, steam generation, and water treatment.

By monitoring pressure conditions in real time, engineers can detect process changes early, improve system reliability, and ensure safe plant operation.
