“If you don’t want to climb on top of your tank in the next five years due to level transmitter drift, choose E+H.”
666
555
55
The Deltapilot FMB70 is not just a measurement tool—it’s a precision-engineered solution. Every character in its ordering code reflects careful consideration of industrial challenges. Let’s go beyond the manual and explore the FMB70’s reliability secrets 🔍
1️⃣ Brand Philosophy: From “Measurement Parameters” to “Engineering Assets”
E+H emphasizes asset performance throughout the lifecycle, not just measurement accuracy.
Modular & Family-Wide Operation 🛠️
Learning FMB70 menus enables fast operation of E+H radar level meters or flow meters
Reduces training costs and minimizes on-site operational errors
HistoROM: Digital Insurance for On-Site Maintenance ⏱️
Acts as an “external hard drive” for calibration data
Swap the module to a new instrument and parameters sync instantly, no recalibration needed
Saves hours and prevents high downtime costs
2️⃣ Core Technology: Contite™ Unit Eliminates “Condensation Hazards” ❄️
Why it’s perfect for cold conditions
In dairy, brewing, or soft drink tanks, media may be 4°C while ambient is 30°C+
Ordinary sensors allow moisture through open vents, causing condensation and drift
Contite™ unit fully seals the measuring element between two metal diaphragms with special filling fluid
Physical isolation against moisture ensures stable readings even in cold tanks

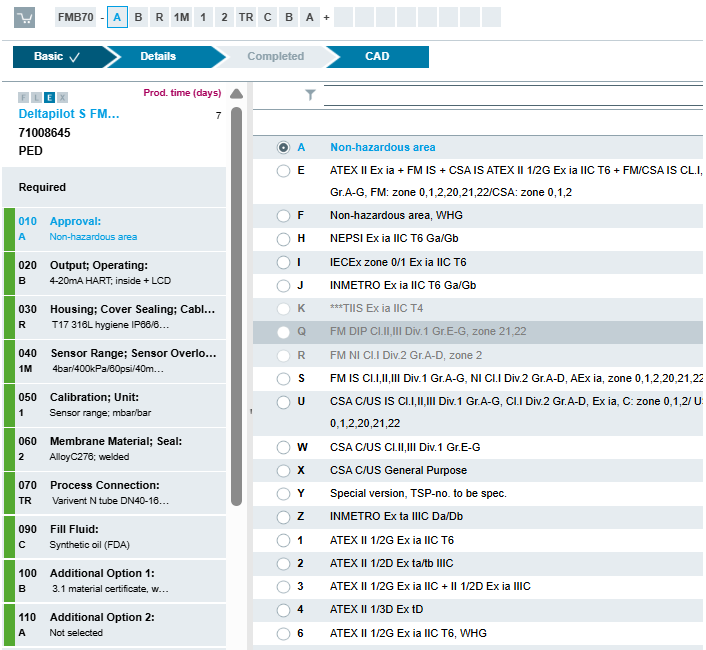

3️⃣ Model Code Breakdown: FMB70-ABR1M12TRCBA 🔧
Selecting a model balances operating conditions and cost. Key considerations:
Environmental Adaptability (ABR): R = 316L hygienic stainless steel housing, resistant to chemical spray, prevents rust
Measurement Core Range (1M): Nominal pressure closely matches actual tank levels for long-term stability
Wetted Material (060-070): Code 2 = Alloy C276 (Hastelloy) diaphragm, resists high-chloride cleaning media, extends life ⏳
Hygienic Connection (TR): Varivent® interface, 3A/EHEDG compliant, no dead zones for CIP
Food-Grade Safety (CBA): FDA-approved filling fluid + 3.1 material certificate for compliant facilities
4️⃣ Pitfall Guide: Details Often Overlooked ⚠️
Atmospheric Compensation: Keep cable or housing vent clear, or level readings fluctuate with weather
Vacuum Conditions: High vacuum imposes stress on metal diaphragms; specify at ordering if vacuum-optimized design is needed
The FMB70-ABR1M12TRCBA code reflects suitability, installation, and long-term stability. Selection balances accuracy, lifespan, budget, and compliance. E+H pre-embeds critical engineering decisions into a rigorous code system. Understanding this code ensures you’re not just buying a level transmitter—you’re securing production continuity ✅ Tip: For specific media (e.g., chemicals), verify chloride content and cleaning temperature. If unsure about material compatibility, reference the official E+H material compatibility manual for secondary verification.
