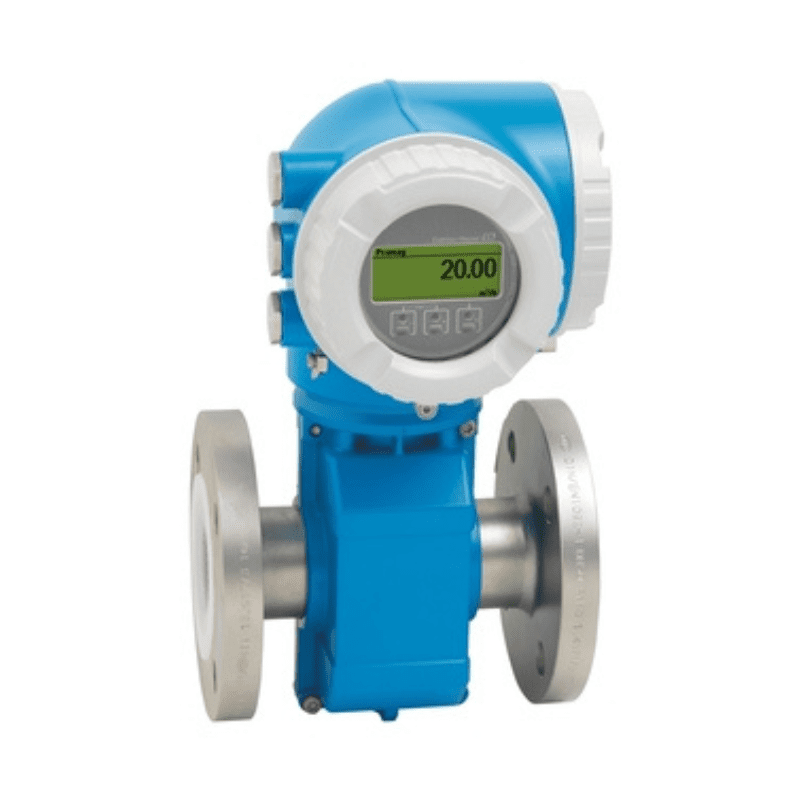

Proline Promag P 300 electromagnetic flowmeter

Endress+Haueser Proline Promag P 300 5P3B electromagnetic flowmeter

$2,150.00

Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Category: Tag: Brand:

Proline Promag P 300
electromagnetic flowmeter

High-temperature flowmeter for process applications with a compact, easily accessible transmitter

Specs at a glance

• Max. measurement error Volume flow (standard): ±0.5 % o.r.± 1
mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s
(0.08 in/s), Flat Spec
• Measuring range 4 dm³/min to 9600 m³/h (1 gal/min to 44 000
gal/min)
• Medium temperature range Liner material PFA: –20 to +150 °C
(–4 to +302 °F) Liner material PFA high-temperature: –20 to
+180 °C (–4 to +356 °F) Liner material PTFE: –40 to +130 °C (–
40 to +266 °F)
• Max. process pressure PN 40, Class 300, 20K
• Wetted materials Liner: PFA; PTFE Electrodes: 1.4435 (F316L);
Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Field of application

Promag P electromagnetic flowmeter is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter Promag P 300 offers a high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to chemical and process applications with corrosive liquids and high medium temperatures


Device properties

  • Nominal diameter: max. DN 600 (24″)

  • All common Ex approvals

  • Liner made of PTFE or PFA

  • Compact dual-compartment housing with up to 3 I/Os

  • Backlit display with touch control and WLAN access

  • Remote display available

Benefits

  • Diverse applications – wide variety of wetted materials

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

  • Reduced complexity and variety – freely configurable I/O functionality

  • Integrated verification – Heartbeat Technology



Measuring principle

Electromagnetic
Product headline

High-temperature flowmeter for process applications with a compact, easily accessible transmitter.
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
Sensor features

Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
Nominal diameter: max. DN 600 (24"). All common Ex approvals.
Transmitter features

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Liner made of PTFE or PFA. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.
Nominal diameter range

DN 15 to 600 (½ to 24")
Wetted materials

Liner: PFA; PTFE
Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Measured variables

Volume flow, conductivity, mass flow
Max. measurement error

Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
Measuring range

4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Max. process pressure

PN 40, Class 300, 20K
Medium temperature range

Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Ambient temperature range

Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material

DN 15 to 300 (½ to 12""): AlSi10Mg, coated
DN 350 to 600 (14 to 24""): Carbon steel with protective varnish
Transmitter housing material

AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Degree of protection

Standard: IP66/67, Type 4X enclosure
Display/Operation

4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Outputs

3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output
Inputs

Status input
4-20 mA input
Digital communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power supply

DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Product safety

CE, C-tick, EAC marking
Functional safety

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine approvals and certificates

LR approval, DNV approval, ABS approval, BV approval
Pressure approvals and certificates

PED, CRN
Material certificates

3.1 material
Hygienic approvals and certificates

ACS, NSF 61, WRAS
